TAIZHOU BODAO MECHANICAL & ELECTRICAL CO., LTD. is located in the Pump Industry Park, known as the "Town of the Pump Industry."
We are a professional manufacturer integrating R&D, design, production, and sales. With 20 years of experience in pump manufacturing, Wave Guide has developed a series of products featuring excellent performance, high quality, and reasonable prices. Our product range includes the QDX series submersible pumps, stainless steel sewage pumps, self-priming jet pumps, and swimming pool pumps.

QD Submersible Pump
We accept OEM order.. This QD submersible pump is designed for effortless fluid transfer in residential settings, including water drainage, aquarium maintenance, garden irrigation, and basement flood
QY Submersible Pump
We accept OEM order.. Keep your aquarium, fountain, or small garden pond clean with this QY submersible pump. Designed for quiet, energy-efficient operation, it ensures smooth water circulation and
QDX Submersible Pump
We accept OEM order.. This QDX submersible pump is perfect for preventing water damage in basements, garages, or low-lying areas prone to flooding. It features an automatic float switch that

Why Choose Us

Certifications

The company has passed ISO9001 and ISO14000 certifications, as well as global market access certifications including CE, CCC, ETL, SAA, ROHS, and UL.

OEM Service

Products are manufactured according to technical drawings and specifications provided by customers. OEM services are supported, including custom branding (logos and packaging design), and are suitable for standard product customization and brand partnerships.

Sales Market

We export to more than 50 countries, including Israel, South Africa, Germany, Poland, Spain, Vietnam, Malaysia, Russia, Thailand, Mexico, Brazil, and Chile.

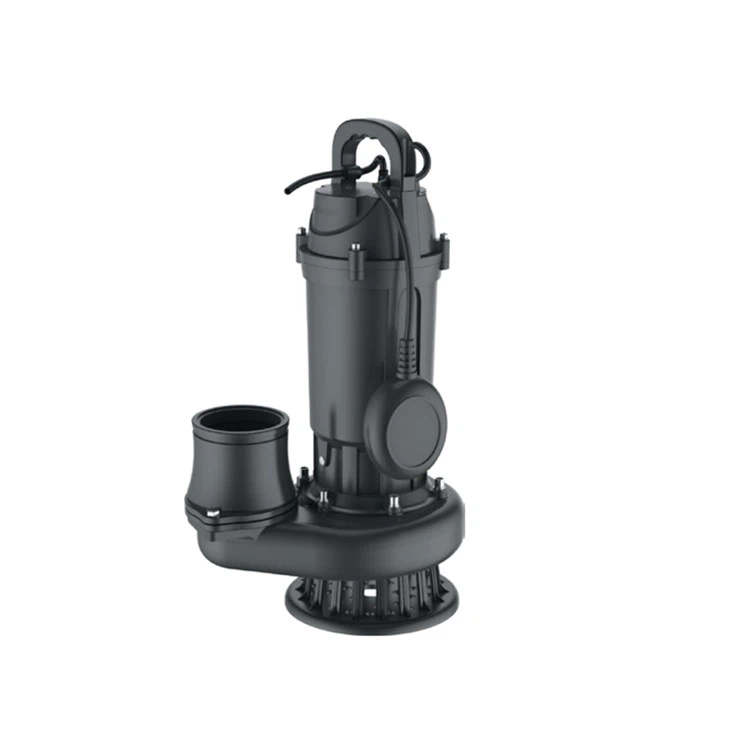

QDX Submersible Pump

QDX, series submersible pump consists of pump, mechanical seal and motor. Pump is at the bottom part of pump, which is adopted centrifugal impeller. Motor which is single-phase or three-phase is at the upper part of pump. Seal is used where pump and motor combine, which is a kind of double-end mechanical seal, O rings are applied to all static joints. Float switch can be equipped to control pump's starting and stopping automatically according to the water level.

PRODUCT PARAMETERS

Model	Power	MAX. Head	MAX. Flow	Outlet	Frequency
QDX(F)1.5-16-0.37	0.37kW	18m	5m³/h	25mm	50Hz/60Hz
QDX(F)3-20-0.55	0.55kW	21m	6m³/h	25mm	50Hz/60Hz
QDX(F)1.5-32-0.75	0.75kW	34m	8m³/h	25mm	50Hz/60Hz
QDX(F)10-16-0.75	0.75kW	18m	20m³/h	50mm	50Hz/60Hz
QDX(F)3-40-1.1	1.1kW	40m	8m³/h	25mm	50Hz/60Hz
QDX(F)15-18-1.1	1.1kW	20m	25m³/h	50mm	50Hz/60Hz
QDX(F)45-7-1.5	1.5kW	7m	45m³/h	80mm	50Hz/60Hz
QDX(F)55-7-1.8	1.8kW	7m	55m³/h	80mm	50Hz/60Hz
QDX(F)65-9-2.2	2.2kW	9m	65m³/h	100mm	50Hz/60Hz
QDXS(F)1.5-16-0.37	0.37kW	16m	1.5m³/h	25mm	50Hz/60Hz
QDXS(F)3-20-0.55	0.55kW	20m	3m³/h	25mm	50Hz/60Hz
QDXS(F)1.5-32-0.75	0.75kW	32m	1.5m³/h	25mm	50Hz/60Hz
QDXS(F)10-16-0.75	0.75kW	16m	10m³/h	50mm	50Hz/60Hz
QDXS(F)3-40-1.1	1.1kW	40m	3m³/h	25mm	50Hz/60Hz
QDXS(F)15-18-1.1	1.1kW	18m	15m³/h	50mm	50Hz/60Hz
QDXS(F)45-7-1.5	1.5kW	7m	45m³/h	80mm	50Hz/60Hz
QDXS(F)55-7-1.8	1.8kW	7m	55m³/h	80mm	50Hz/60Hz
QDXS(F)65-9-2.2	2.2kW	9m	65m³/h	100mm	50Hz/60Hz

Features of QDX Submersible Pump

Cast iron pump body, aluminum motor casing

Copper winding

Built-in thermal protector

Stainless steel shaft

Double-end Mechanical seal

Stainless steel filter

Work conditions

The pump can work properly and continuously under following operational conditions:
1. Medium is not corrosive,Sand contents should be max. 0.01% by volume and granular size should be max. 0.2mm.
2. Medium temperature shouldn't be over 40°C and PH should be 6.5-8.5.
3. The pumps should be operated within rated head.
4. The pumps should be fully submerged into water with depth of less than 3m mad max. the pump should be min. 0.5m over the water bottom and not be insert into sludge.
5.Power frequency should be 50HZ,single phase voltage 220V,three phase voltage 380V,and voltage fluctuation should be 0.9-1.1 times than the rated.

Material

Structure of pump	Material	Can be selected
Pump body	Aluminum	Cast-Iron / Stainless steel
Impeller	Aluminum	/
Pump shaft	45 # Steel	/
Cable	/	Arbitrary length

Application of QDX Submersible Pump

Small electrical irrigation and drainage equipment.
Urban well water pumping, field irrigation and drainage, garden irrigation and household water supply
Drainage of industrial accumulated water, water supply and drainage for construction, livestock breeding

INSTRUCTIONS FOR USE

Do not lower the pump using the power cable but attach a rope to the pump handle;

If you are dealing with very dirty water, it is advisable to position the pump at a certain height from the bottom to avoid blocking the inlet pipe;

It is advisable to install the electric pump ensuring that it is completely submerged and that the float switch is free to move;

The maximum immersion depth is limited by the length of the power cable;

If the thermal protection trips, the pump will automatically restart after the motor has cooled down.

Packing & Shipping

To avoid damp, inner layer wrapped with plastic paper

To lessen vibration, middle layer filled with foam

To avoild squeeze, motor are packed with plywood or wooden case

Customized package is also accept

FAQ

Q: Can I get the samples?

A: Yes, we can, if returned us mass cargo, will return u the sample fee.

Q: What is your MOQ?

A: We can accept small quantity.

Q: Can u accept custom? Of course.

A: MOQ 100pcs, custom kraft box.MOQ 1000pcs, custom colored box.
