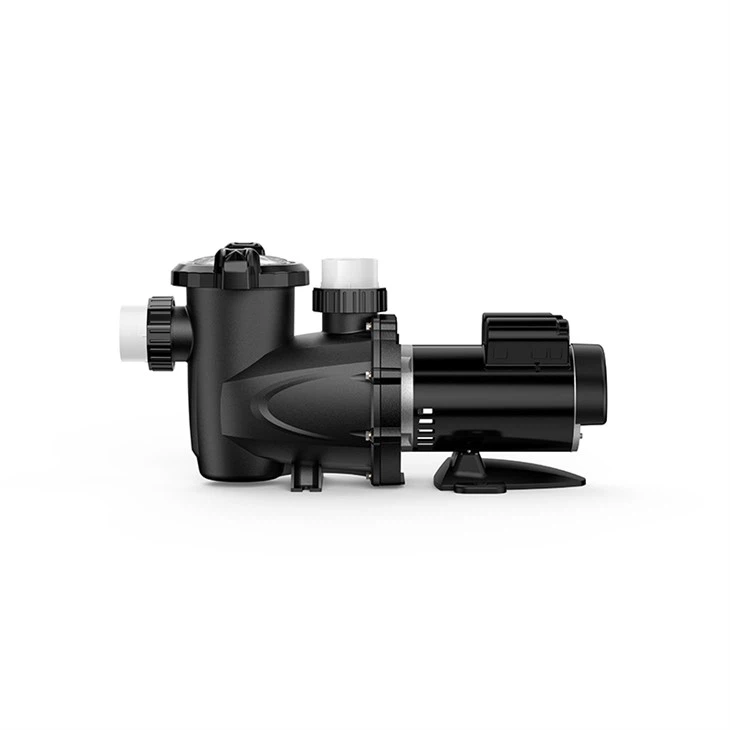

The two speed pool pump offers high and low speeds, perfectly balancing the needs of both intense cleaning and daily filtration. Its exceptional energy efficiency is a key feature: in low-speed mode, which handles the bulk of the work, it consumes only a fraction of the power of high-speed mode, easily saving you 40%-70% on your electricity bill. Not only does it significantly reduce operating costs, but it also enhances the pool experience with quieter operation and more refined filtration, making it a wise choice for those seeking both economy and quality.

Mechanical seal: S silicon carbide + 316SS + fluorine rubber (super wear-resistant)
Shaft:304SS Food grade stainless steel
Protection class: ODP/TEFC
Medium temperature: ≤45°
Insulation class: Class F
Pump body material: PP+35GF PA66+35GF

SCOPE OF APPLICATION

Suitable for various household and commercial swimming pools, hot springs, landscape baths, aquariums and other environments that require filtration.

product-974-232

PRODUCT PARAMETERS

Model	Voltage (Hz)	Output Power (HP)	Max Flow (m³/h)	Max Head (m)	Operation method
NSPP-1000	115V 60HZ	2pole 1HP	27	14.7	单⼀电容运转/PSC
NSPP-1000-2/4	115V 60HZ	2pole 1HP	27	14.7	单⼀电容运转/PSC
NSPP-1000-2/4	115V 60HZ	4pole 0.16HP	13	5.4	双值电容运转/Dual Capacitor
NSPP-1500	115V 60HZ	2pole 1.5HP	30	18.8	单⼀电容运转/PSC
NSPP-1500-2/4	230V 60HZ	2pole 1.5HP	30	18.8	单⼀电容运转/PSC
NSPP-1500-2/4	230V 60HZ	4pole 0.24HP	14	5.6	双值电容运转/Dual Capacitor
NSPP-2200	230V 60HZ	2pole 2.2HP	38.5	23.5	单⼀电容运转/PSC
NSPP-2200-2/4	230V 60HZ	2pole 2.2HP	38.5	23.5	单⼀电容运转/PSC
NSPP-2200-2/4	230V 60HZ	4pole 0.41HP	18.6	7.6	双值电容运转/Dual Capacitor
NSPP-3000	230V 60HZ	2pole 3HP	42	25	单⼀电容运转/PSC
NSPP-3000-2/4	230V 60HZ	2pole 3HP	42	25	单⼀电容运转/PSC
NSPP-3000-2/4	230V 60HZ	4pole 0.55HP	21	8.3	双值电容运转/Dual Capacitor
NSPP-4000	230V 60HZ	2pole 4HP	48	30.8	单⼀电容运转/PSC
NSPP-4000-2/4	230V 60HZ	2pole 4HP	48	30.8	单⼀电容运转/PSC
NSPP-4000-2/4	230V 60HZ	4 pole 0.61HP	23.5	9.9	双值电容运转/Dual Capacitor
